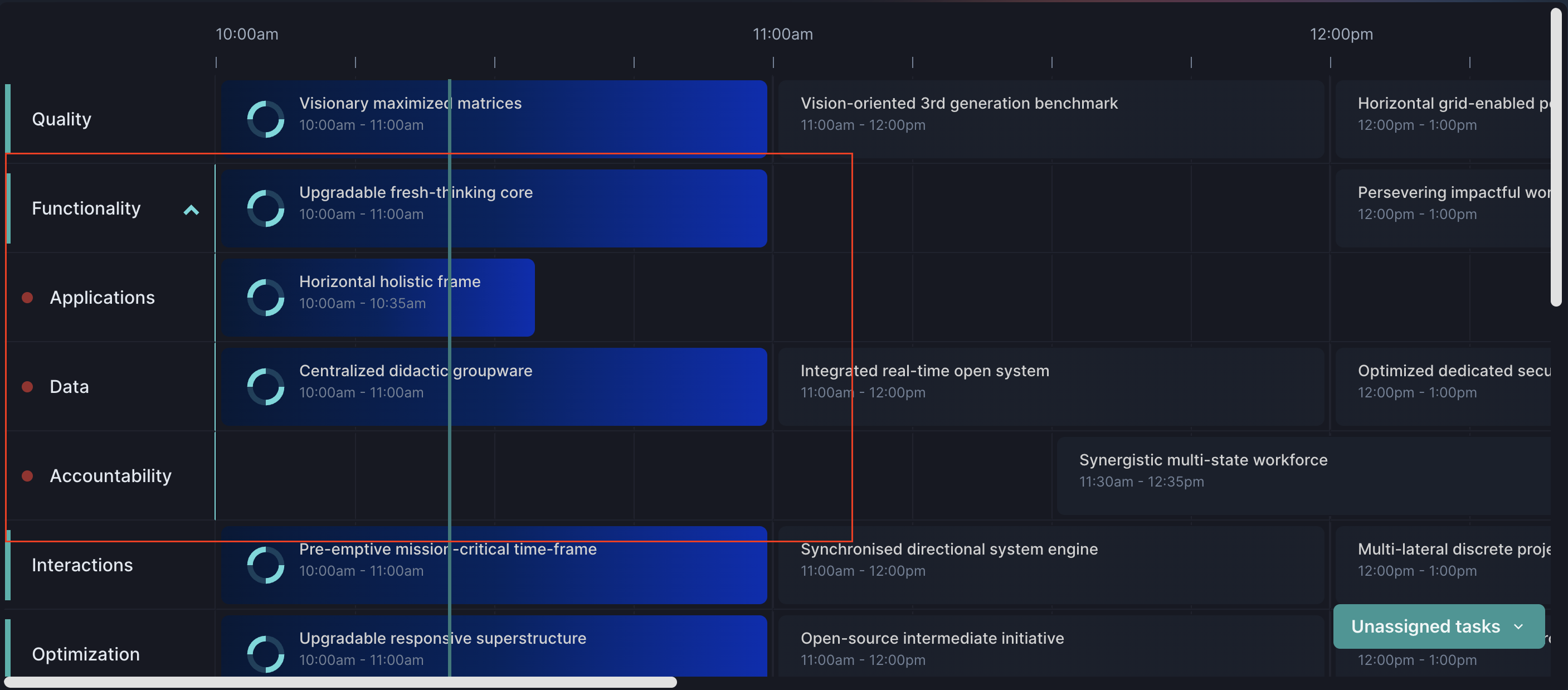

Group Tree

Enable the group tree in the layout

info

The overlap feature has to be enabled to use the group tree feature in the layout.

Channel schema

You can add other properties that you wish to have according to your specific requirements or functionalities you want to implement.

Property	Type	Status	Description
logo	string	required	Image URL
uuid	string	required
title	string	optional	Title of the channel
groupTree	boolean	optional	Set to true if the channel is the first main top channel in a group, used to display the channel group name in sidebar
parentChannelUuid	string	optional	Set for nested children. Required when main channel has groupTree set to true
isOpen	boolean	optional	Used to open the channel group in the sidebar

Example

const { getEpgProps, getLayoutProps } = useEpg({
  channels,
  epg,
  startDate,
  endDate,
  overlap: {
    enabled: true, // The overlap has to be enabled to use the group tree
    mode: "stack"
  },
  ...
});
